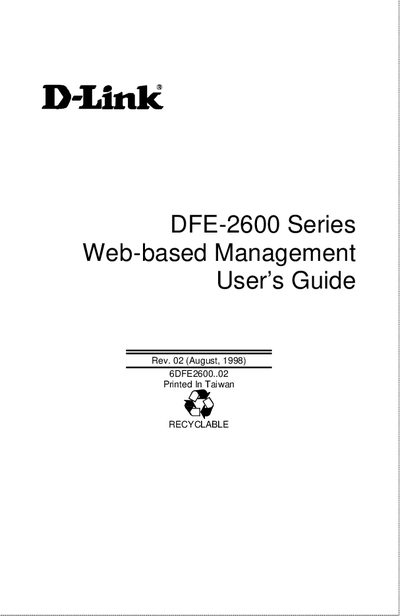

This document is the DFE-2600 Series Web-based Management User's Guide, which describes the management features and configuration options of this series of intelligent Hubs. Users can manage the switch using a standard browser through the embedded web interface.
This guide provides instructions for using the embedded web‑based interface of the DFE‑2600 dual‑speed stackable hub. It covers initial setup, browser requirements, and how to access the management pages via a standard web browser such as Netscape Navigator or Microsoft Internet Explorer.
The manual details configuration screens for system information, IP interface parameters, SNMP trap receivers, software download options, intrusion control, and backup port settings, allowing administrators to fully manage and secure the hub from a web browser.
| Hardware Revision | Revision number for the hub hardware |
|---|---|
| PROM Firmware Version | Version number for the firmware chip |
| Runtime Software Version | Version number for the resident and downloadable software |
| System OID | SNMP Object Identifier for this hub type |
| IP Address | The Internet address for the device |
| Subnet Mask | Determines the level of the subnet that the hub is on |
| Default Gateway | The default router for the device |
| MAC Address | The physical address for the device |
| SNMP Community | SNMP community name to authenticate trap reception |
| Boot Server Address | IP address of the TFTP server where the configuration file is located |
Open the IP Interface screen in the web interface and set the IP address, subnet mask, default gateway, MAC address, and interface type as needed.
It restricts a port to a specific MAC address and can send a trap, partition the port, or both when an unauthorized device is detected.
