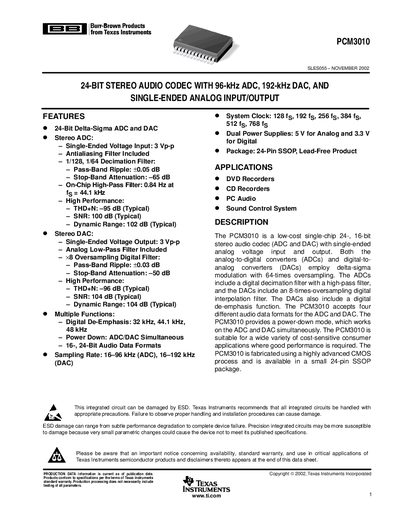

PCM3010 is a low-cost single-chip 24-, 16-bit stereo audio codec (ADC and DAC) with single-ended analog voltage input and output.
The PCM3010 is a low‑cost 24‑bit stereo audio codec that integrates both ADC and DAC functions in a single 24‑pin SSOP package. It supports single‑ended analog inputs and outputs, multiple audio data formats, and includes on‑chip digital filters and de‑emphasis.
The document provides full pin‑out tables, absolute maximum ratings, detailed electrical characteristics, and mechanical dimensions, along with application notes for DVD/CD recorders, PC audio, and sound‑control systems.
| Resolution | 24 bits |
|---|---|
| ADC Sampling Frequency | 16 kHz – 96 kHz |
| DAC Sampling Frequency | 16 kHz – 192 kHz |
| Typical THD+N (DAC) | -96 dB |
| Typical SNR (ADC) | 100 dB |
| Power Supplies | 5 V analog, 3.3 V digital |
| Package | 24‑pin SSOP, lead‑free |
VINA is the ADC analog input for the R‑channel.
Typical THD+N for the DAC is –96 dB.
The analog section requires 5 V and the digital section requires 3.3 V.
