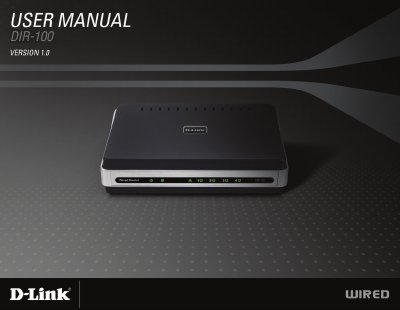

The D-Link DIR-100 User Manual is a user manual for the D-Link DIR-100 Ethernet Broadband Router. The manual describes the features and characteristics of the product.
The DIR-100 is an Ethernet broadband router that shares a high‑speed Internet connection among multiple computers. It includes features such as VPN pass‑through, advanced firewall, port forwarding, and a built‑in Ethernet switch.
The manual guides users through installation, network settings, DHCP configuration, security options, and troubleshooting, with appendices covering static IP assignment and basic networking concepts. This manual is written in Chinese.
| LAN ports | 4 (1‑4) |
|---|---|
| WAN port | Auto‑MDIX |
| Power adapter | Must match voltage rating; incorrect voltage damages unit |
| VPN support | IPSec and PPTP pass‑through |
While the device is powered on, press and hold the reset button (using a paper‑clip) for about 10 seconds, then release.
Open the network adapter properties, select “Use the following IP address,” and enter the desired IP, subnet mask, and gateway as described in Appendix A.
The router provides four LAN ports (1‑4) and one WAN port, all supporting Auto‑MDIX.
Yes, it supports multiple and concurrent IPSec and PPTP pass‑through sessions.
