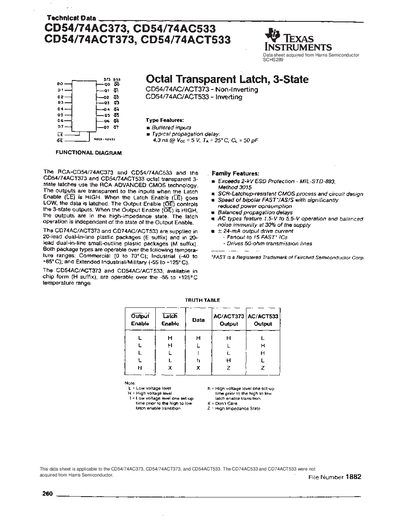

This document provides the data sheet for Harris Semiconductor's CD54/74AC373, CD54/74ACT373, and CD54ACT533 products. The document also mentions that Texas Instruments and its subsidiaries reserve the right to make changes to their products or discontinue them without notice, and advises customers to obtain the latest version of relevant information to ensure the accuracy and completeness of the information relied upon before placing orders.
The CD54/74AC373, CD54/74AC533, CD54/74ACT373 and CD54/74ACT533 are octal transparent 3‑state latches built with advanced CMOS technology. They are offered in 20‑lead dual‑in‑line (suffix €), 20‑lead small‑outline (suffix M) and chip (suffix H) packages, and operate over commercial (0 °C to 70 °C), industrial (‑40 °C to 85 °C) and extended industrial/military (‑55 °C to +125 °C) temperature ranges.
Electrical specifications include a typical propagation delay of 4.3 ns at VEE = 5 V, a supply‑voltage range of 5.5 V, output source/sink capability of ±50 mA per pin, and power dissipation up to 500 mW per package. Detailed static and switching characteristics, timing parameters, and recommended operating conditions are provided for both AC and ACT device families.
