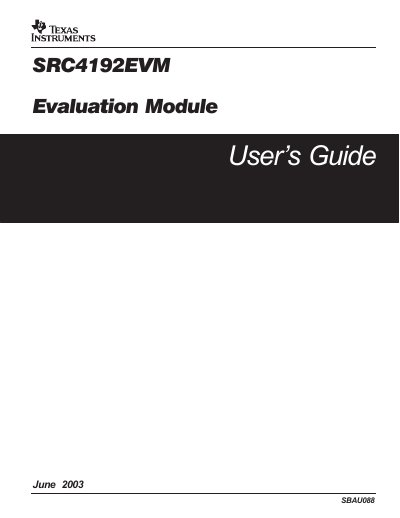

This is a user guide for using TI products
This guide explains the purpose, safety warnings, and handling instructions for the SRC4192EVM evaluation kit, which is intended for engineering development or evaluation only. It includes important notices about electro‑static discharge, temperature limits, and the non‑commercial nature of the kit.
The manual details hardware setup, switch and jumper configuration, the schematic and PCB layout, and provides a complete bill of materials. It also lists related documentation, part numbers, and contact information for TI support.
| Voltage regulator output | +3.3 V |
|---|---|
| Crystal frequency | 27 MHz |
| Maximum component case temperature | >60 °C |
The evaluation kit is intended for engineering development or evaluation purposes only and is not fit for commercial use.
