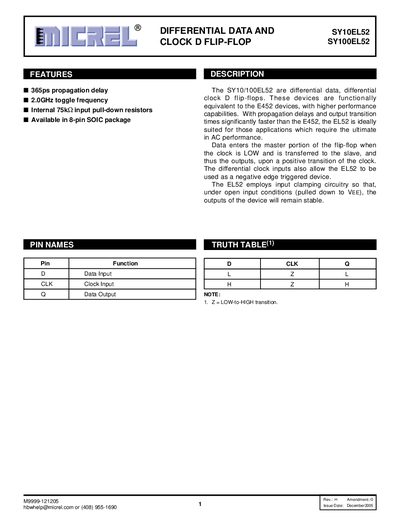

The SY10/100EL52 is a differential data, differential clock D flip-flop. These devices have higher performance capabilities than the E452 devices, with faster propagation delays and output transition times. They are ideally suited for applications that require the ultimate in AC performance. The EL52 can be used as a negative edge triggered device with its differential clock inputs.
The SY10EL52 and SY100EL52 are differential data and differential clock D flip‑flops offering high‑speed performance with a typical propagation delay of 365 ps and a maximum toggle frequency of 2.0 GHz. They feature internal 75 kΩ pull‑down resistors and can operate as negative‑edge‑triggered devices.
The devices are supplied in an 8‑Pin SOIC (Z8‑1) package, with detailed ordering information and both DC and AC electrical characteristics listed, including supply currents, voltage ranges, and timing parameters. Mechanical drawings provide top, end, and bottom views for board layout.
| Propagation delay (typical) | 365 ps |
|---|---|
| Maximum toggle frequency | 2.0 GHz |
| Internal input pull‑down resistor | 75 kΩ |
| Package type | 8‑Pin SOIC (Z8‑1) |
The SY10EL52 has a typical propagation delay of 365 ps.
The device can toggle up to 2.0 GHz.
Both parts are available in an 8‑Pin SOIC (Z8‑1) package.
The inputs include internal 75 kΩ pull‑down resistors.
