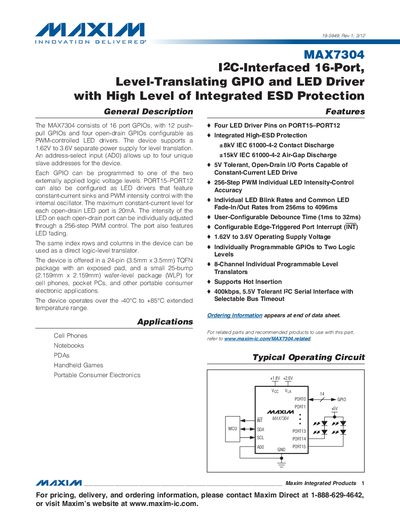

MAX7304 is a 16-port GPIO and LED driver with I2C interface from MAXIM company, which supports 1.62V to 3.6V power supply and has high level of ESD protection.
The MAX7304 from Maxim Integrated is a 16‑port GPIO expander that provides 12 push‑pull GPIOs and four open‑drain ports configurable as constant‑current LED drivers. It operates from a 1.62 V to 3.6 V supply and supports up to four I²C slave addresses. Each LED driver can sink up to 20 mA and offers 256‑step PWM intensity control with optional fading.
The device is offered in a 24‑pin TQFN package with an exposed pad and a 25‑bump wafer‑level package for portable electronics. It meets extended temperature specifications (‑40 °C to +85 °C) and high ESD protection (+8 kV contact, +15 kV air‑gap).
| Operating Supply Voltage | 1.62 V to 3.6 V |
|---|---|
| Number of GPIO Ports | 16 (12 push‑pull, 4 open‑drain) |
| Maximum LED Sink Current per Port | 20 mA |
| PWM Resolution | 256 steps |
| ESD Protection (Contact) | +8 kV |
| ESD Protection (Air‑Gap) | +15 kV |
| Address‑Select Inputs | Up to four unique slave addresses |
Each open‑drain LED port can sink up to 20 mA.
The address‑select input (ADO) allows up to four unique slave addresses.
It provides +8 kV contact discharge and +15 kV air‑gap discharge protection on all pins.
