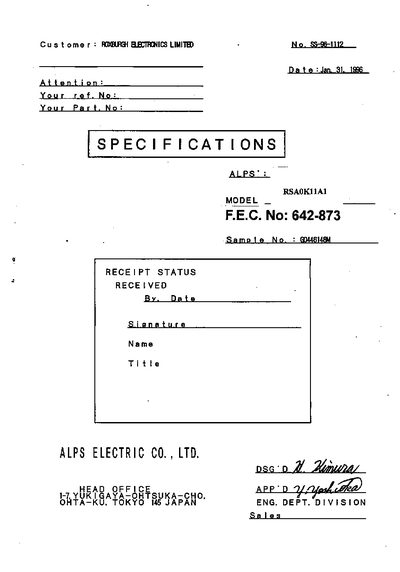

This document provides specifications and characteristics of the RSA0K11A1 potentiometer from ROXBURGH ELECTRONICS LIMITED.
The document details the electrical and mechanical specifications of the ALPS Master Type Slide Potentiometer, including resistance values, rated voltage, power rating, and environmental limits. Test conditions such as operating temperature, storage temperature, humidity, and pressure are also defined.
Additional sections cover mechanical characteristics like lever travel, side thrust load, and endurance testing, as well as practical guidance for soldering, mounting, and safety precautions during installation and use.
| Storage temperature range | -30 °C to 70 °C |
|---|---|
| Relative humidity | 60 % to 70 % |
| Nominal total resistance | 10 kΩ ±20 % |
| Rated voltage | Maximum rated voltage (value not specified) |
| Power rating | Based on continuous full‑load operation |
Use 63 % Sn solder (JIS 23282), keep the soldering temperature at or below 300 °C, and limit the soldering time to about 3 seconds per joint.
