The SP200 Soldering System's tip cartridges are designed for a wide range of soldering applications. Operators should choose the tip that allows maximum contact with the work surface for optimum performance. We recommend starting with a 600 series tip cartridge.

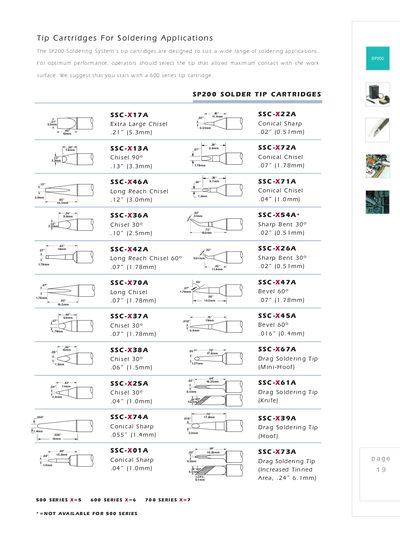

This leaflet lists the tip cartridges compatible with the SP200 soldering system. It provides the recommended tip series and detailed dimensions for each tip type.
Tip options include extra‑large chisel, various chisel angles, long‑reach, conical, and drag soldering tips, with sizes ranging from 0.4 mm up to 5.3 mm.
| Extra Large Chisel tip size | 5.3 mm (21") |
|---|---|
| Chisel 90° tip size | 3.3 mm (13") |
| Long Reach Chisel 60° tip size | 1.78 mm (0.07") |
| Conical Sharp tip size | 0.51 mm (0.02") |
The manufacturer suggests starting with a 600 series tip cartridge.
