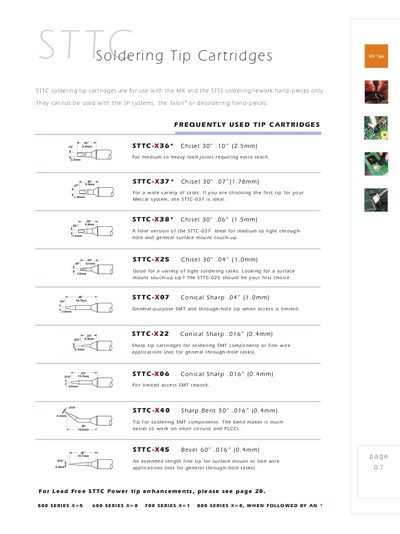

This document introduces the commonly used specifications of the STTC soldering tips for Metcal MX series products, including the size, shape, and application scenarios of the soldering tips.
The document lists the range of OKI METCAL soldering tip cartridges that are compatible with the MX and STSS hand‑pieces. It notes that these tips cannot be used with SP systems, the Talon® or desoldering hand‑pieces.
Tip cartridges are organized by series (STTC, SRTC, PTTB, SMTC) and include chisel, conical, bevel, bent and specialty designs for various soldering and rework tasks, including micro‑component work and robotic applications.
| STTC‑X36 tip size | 0.10" (2.5 mm) |
|---|---|
| STTC‑X22 tip size | 0.016" (0.4 mm) |
STTC tip cartridges are for use with the MX and the STSS soldering/rework hand‑pieces only; they cannot be used with SP systems, the Talon® or desoldering hand‑pieces.
The Microfine tip series, including STTC‑X90 and SMTC‑X98‑X175, are designed for reworking 0201 and 0402 components in tight spaces.
Yes, SRTC robotic tip cartridges are provided for use with MX‑RM5E or MX‑RMB8E handles in robotic applications.
