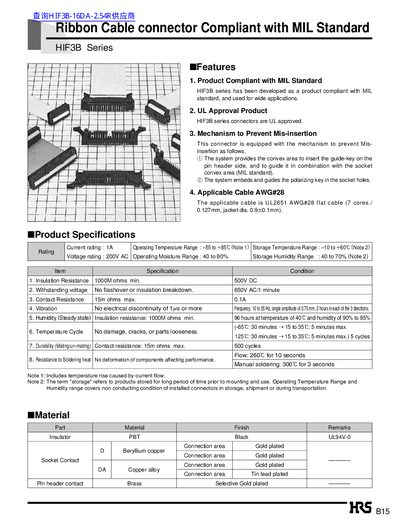

HRS HIF3B Series Ribbon Cable Connector Product Leaflet
The HIF3B Series ribbon cable connectors are designed to meet MIL standards and are UL approved for a wide range of applications. They feature a 2.54 mm pitch and are offered in multiple contact configurations (16‑64 contacts) with both straight and right‑angle styles.
Key features include a mis‑insertion prevention mechanism with convex guide‑key areas, robust temperature and humidity ratings, high durability (500 mating cycles), and resistance to soldering heat up to 300 °C. Detailed ordering information, material specifications, and mounting patterns are provided for easy integration into electronic assemblies.
HRS HIF3B specifications
| Current rating | 1 A |
|---|---|
| Voltage rating | 200 V AC |
| Operating Temperature Range | -55 °C to +85 °C |
| Storage Temperature Range | -10 °C to +60 °C |
| Insulation Resistance | 1000 MΩ min at 500 V DC |
| Contact Resistance | 15 mΩ max |
| Vibration Test | 10‑55 Hz, 0.75 mm amplitude, 2 h each direction |
| Humidity Test (steady state) | 96 h at 40 °C, 90‑95 % RH |
| Mating/Un‑mating Cycles | 500 cycles |
| Soldering Heat Resistance | Up to 300 °C for 3 s (manual) |
Source: HRS HIF3B Series Ribbon Cable Connector Product Leaflet
All HRS HIF3B documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What standard does the HIF3B series comply with?
The HIF3B series is developed as a product compliant with MIL standard.
From: HRS HIF3B Series Ribbon Cable Connector Product Leaflet
How does the connector prevent mis‑insertion?
It uses a convex area on the pin header side and a matching socket convex area, plus embedded polarizing keys in the socket holes.
From: HRS HIF3B Series Ribbon Cable Connector Product Leaflet
What is the current rating of the HIF3B series connector?
The connector is rated for a current of 1 A.
What voltage can the HIF3B series handle?
It is rated for 200 V AC.
