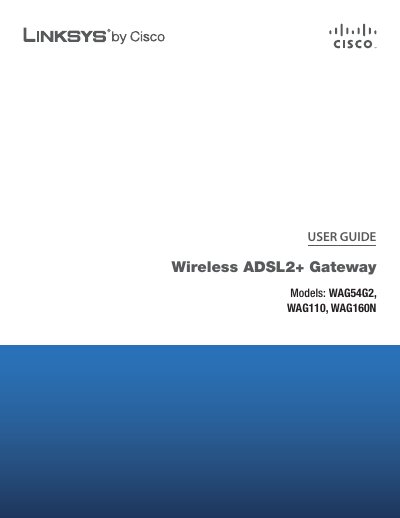

This user guide introduces the features and usage methods of the Wireless ADSL2+ Gateway product
This guide covers the Linksys Wireless ADSL2+ Gateway, a device that provides wired and wireless Internet access through four Ethernet ports, a DSL connection, and Wi‑Fi. It includes a product overview, security recommendations, installation instructions, and advanced configuration options.
Later sections detail troubleshooting procedures, detailed technical specifications, warranty information, regulatory notices, and the software license agreement. The guide is intended for end‑users setting up the gateway and for technicians performing maintenance.
| Standards | 802.11g, 802.11b, 802.3u, g.992.1, g.992.2, g.992.3, g.992.5, T1.413i2, U‑R2 Annex B |
|---|---|
| Ports | DSL, Ethernet (1‑4), Power |
| Transmit Power | 18 dBm (WAG54G2) / 17 dBm (WAG110, WAG160N) |
| Antenna Gain | 2 dBi |
| Power Supply | 12 VDC, 1 A |
| Dimensions | 202 × 34 × 160 mm (8.0" × 1.3" × 6.3") |
| Weight | 362 g (12.8 oz) |
| Certifications | FCC, UL, CE, IDA, Anatel, A‑tick |
| Operating Temperature | 0 °C to 40 °C |
Press and hold the Reset button for about five seconds, or use the Administration > Factory Defaults screen in the web utility.
Enter 192.168.1.1 in a web browser’s address bar.
The default username and password are both “admin”.
