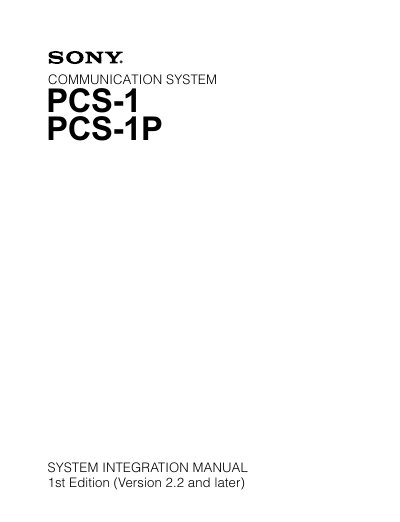

This document is the 1st edition (Version 2.2 and later) of the integration manual for the PCS-1 and PCS-1P communication system. It is intended for qualified service personnel and provides guidance on installation, operating environment, and system connections. It emphasizes that only qualified personnel should perform servicing and provides corresponding safety warnings.
This manual provides detailed instructions for installing and configuring the Sony PCS-1 and PCS-1P videoconferencing system. It includes layout guidelines for the camera and microphones, wiring diagrams, LAN/ISDN setup, and software update procedures.
The document also contains technical data such as port settings, audio/video input‑output characteristics, and maintenance procedures for qualified service personnel, including safety warnings and troubleshooting steps.
| Camera horizontal range at maximum zoom | 5.1 m |
|---|---|
| Infrared light emitter maximum range (document stand) | about 5 m |
| Default P‑P connection port number | 0.0 |
Install the microphone about 50 cm away from the participants.
The infrared light emitter can reach a maximum of about 5 meters.
The system can use the built‑in microphone, the optional PCS‑A1, or the PCS‑A300 microphone.
