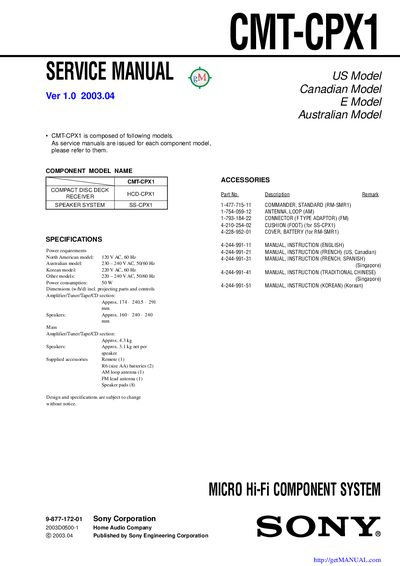

This document provides detailed maintenance instructions for the CMT-CPX1 Micro Hi-Fi Component System
The Sony CMT-CPX1 Service Manual covers the compact disc deck system and its related components, including the receiver (HED-CPX1) and speaker system (8S-CPX1). Service manuals are issued for each component model, and this document references those separate manuals.
Key specifications include power requirements for various regional models, a 50 W power consumption, dimensions of the amplifier/tuner/tape/CD section (≈174 × 240.5 × 291 mm) and speakers (≈160 × 240 × 240 mm), and masses of roughly 4.3 kg for the main unit and 3.1 kg per speaker. The manual also lists supplied accessories such as a remote control, AA batteries, loop and FM antennas, and speaker pads.
| Power requirement (North American model) | 120 V AC, 60 Hz |
|---|---|
| Power consumption | 50 W |
| Dimensions (Amplifier/Tuner/Tape/CD section) | ≈174 × 240.5 × 291 mm |
| Dimensions (Speakers) | ≈160 × 240 × 240 mm |
| Mass (Amplifier/Tuner/Tape/CD section) | ≈4.3 kg |
| Mass (Speakers, per unit) | ≈3.1 kg |
It requires 120 V AC at 60 Hz.
The supplied accessories include a remote control, two AA batteries, an AM loop antenna, an FM lead antenna, and eight speaker pads.
The unit consumes 50 W of power.
