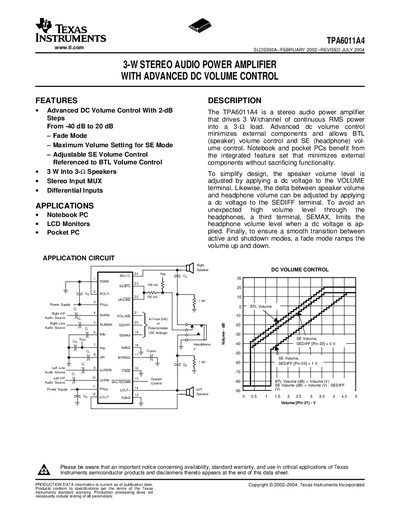

Texas Instruments TPA6011A4 3‑W Stereo Audio Power Amplifier Datasheet

The datasheet is for TPA6011A4, a 3W stereo audio power amplifier with advanced DC volume control. It supports BTL and SE modes and can drive 3W/channel of continuous RMS power from -40 dB to 20 dB into a 3-ohm load.

Brand: Texas Instruments
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 37
File format: PDF
File size: 1 MB
Published: 08 May, 2012
Updated: 30 September, 2023
MD5 checksum: 357D886E29A717D6D855731AFBAA992D
PDF: Texas Instruments TPA6011A4 3‑W Stereo Audio Power Amplifier Datasheet PDF

About this manual

The TPA6011A4 is a 3‑W per channel stereo audio power amplifier that includes advanced DC volume control, fade mode, and selectable SE/BTL output configurations. It is intended for notebook PCs, LCD monitors, and pocket PCs, offering differential inputs and a stereo input MUX.

The datasheet details electrical characteristics, absolute maximum ratings, recommended operating conditions, pin descriptions, functional block diagram, and volume‑control tables for both BTL and SE modes. It also includes typical performance graphs, land‑pattern guidelines, and the standard TI product notice.

What's inside

Features Description
Applications
Electrical Characteristics
Absolute Maximum Ratings
Recommended Operating Conditions
Pin Functions
Functional Block Diagram
DC Volume Control (BTL Mode)
DC Volume Control (SE Mode)
Typical Characteristics

Specifications

Supply Voltage (Vpp)	Typical 5.5 V
Supply Voltage Range (Recommended)	4.0 V – 5.5 V

Frequently asked questions

What supply voltage range is recommended for normal operation?

The recommended supply voltage (Vpp) is between 4.0 V and 5.5 V.

Download PDF (1 MB)
