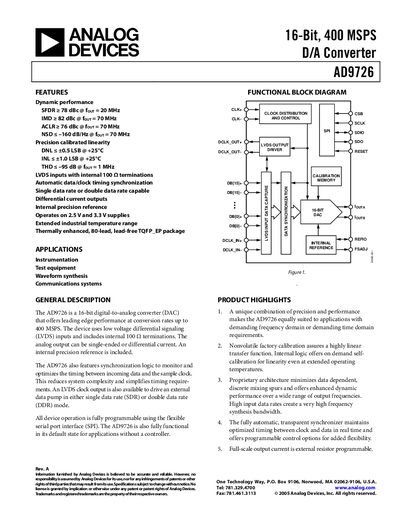

The AD9726 is a 16-bit, 400 MSPS D/A converter with excellent dynamic performance, precise linearity, and low noise.
The AD9726 is a 16‑bit DAC capable of conversion rates up to 400 MSPS. It uses LVDS inputs with internal 100 Ω terminations and provides both single‑ended and differential current outputs. An internal precision reference is included, and the device supports both single‑data‑rate and double‑data‑rate operation.
The datasheet details electrical specifications, pin configurations, timing diagrams and absolute maximum ratings. It also lists typical applications such as instrumentation, test equipment, waveform synthesis and communications systems.
| Differential Non‑Linearity (DNL) | +0.5 LSB (min) |
|---|---|
| Integral Non‑Linearity (INL) | +1.0 LSB (min) |
| Full‑Scale Output Current | 20 mA |
| AVDD1/AVDD2 Supply Voltage | 3.13 V – 3.47 V |
| Operating Temperature Range | ‑40 °C to +85 °C |
The AD9726 can operate at an update rate of up to 400 MSPS.
It uses LVDS inputs with internal 100 Ω terminations.
The full‑scale output current is 20 mA.
AVDD1/AVDD2 require 3.13 V–3.47 V, while other supplies (ADVDD, ACVDD, etc.) require 2.37 V–2.63 V.
