1n4614-1 thru 1n4627-1 is available in jan, jantx, jantxv and jans per mil-prf-19500/435, features low current operation (250 µa), low reverse leakage and low noise characteristics, double plug construction and metallurgically bonded

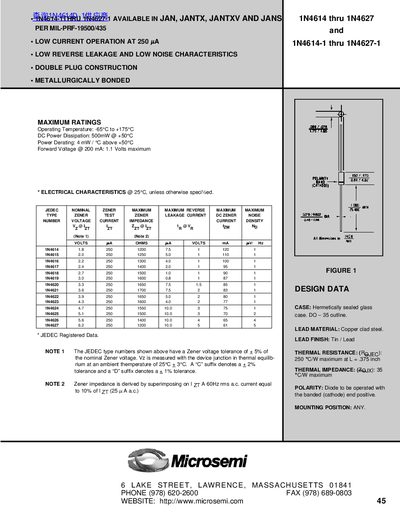

The Microsemi 1N4614-1 to 1N4627-1 series are hermetically sealed glass‑case Zener diodes available in multiple package styles. The datasheet provides detailed design data, maximum ratings, and electrical characteristics for each part in the series.
Key features include low‑current operation at 250 µA, low reverse leakage, low noise, and a double‑plug construction. Thermal resistance, impedance curves, and typical Zener voltage values are also listed to aid designers in selecting the appropriate diode for their applications.
| Operating Temperature Range | -65°C to +175°C |
|---|---|
| Maximum Power Dissipation | 500 mW @ +50°C |
| Typical Zener Voltage (1N4614) | 1.8 V |
| Typical Zener Voltage (1N4627) | 6.2 V |
The 1N4614 diode has a maximum reverse leakage current of 250 µA.
Power derates at 4 mW per °C above +50°C.
