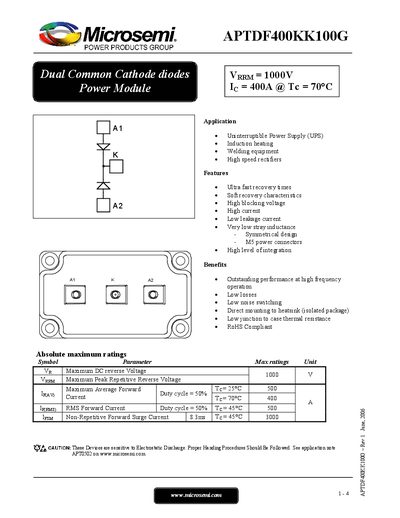

This document describes the absolute maximum ratings, applications, features, and electrical characteristics of the APTDF400KK100G product.
The APTDF400KK100G is a high‑frequency power semiconductor designed for applications such as uninterruptible power supplies, induction heating, welding equipment, and high‑speed rectifiers. It offers ultra‑fast recovery times, low leakage current, and a symmetrical design with IMS power connectors.
Key features include a maximum forward current of 400 A, a reverse voltage rating of 1000 V, low loss and low noise switching, and RoHS compliance. The datasheet lists detailed electrical, dynamic, and thermal characteristics, as well as package dimensions and mounting information.
| Maximum Forward Current | 400 A @ Tc=707 °C |
|---|---|
| Maximum Reverse Voltage | 1000 V |
| Reverse Recovery Time | 20 ms |
| Junction Capacitance | 480 pF @ 1000 V |
| Package Weight | 280 g |
| Storage Temperature Range | -40 °C to 125 °C |
| RoHS Compliance | Yes |
The device can handle up to 400 A at a case temperature of 707 °C.
The reverse recovery time is specified as 20 ms.
Yes, the device is RoHS compliant.
The package weight is 280 g.
