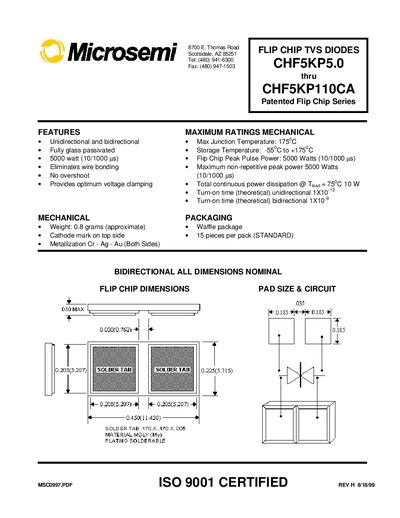

This document introduces the features of CHF5KP5.0 thru CHF5KP110CA series, including maximum ratings, mechanical properties, electrical properties, etc.
The Microsemi CHF5KP5.0‑CHF5KP110CA series are flip‑chip transient voltage suppressor (TVS) diodes offered in both unidirectional and bidirectional versions. They feature a fully glass‑passivated package, 5000 W peak pulse power, and a low‑overshoot response.
Key specifications include a maximum junction temperature of 175 °C, storage range from –55 °C to +175 °C, and a waffle‑style packaging of 15 pieces per standard pack. Detailed electrical characteristics such as stand‑off voltage, breakdown voltage and leakage current are listed for each part number in the series.
| Maximum Junction Temperature | 175 °C |
|---|---|
| Storage Temperature Range | -55 °C to +175 °C |
| Flip Chip Peak Pulse Power | 5000 W (10/1000 µs) |
| Continuous Power Dissipation @ 75 °C | 10 W |
| Stand‑Off Voltage (CHF5KP5.0) | 5 V |
The maximum junction temperature is 175 °C.
They can be stored from –55 °C up to +175 °C.
The flip‑chip peak pulse power is rated at 5000 W for a 10/1000 µs pulse.
