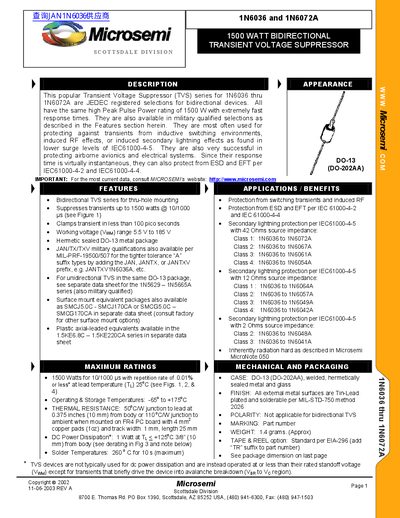

This document describes the features and characteristics of the 1N6036 to 1N6072A series bidirectional transient voltage suppressors (TVS) produced by Microsemi Scottsdale Division. These products have a high peak pulse power rating of 1500 W and extremely fast response times. They are primarily used for protecting against transients from inductive switching environments, induced RF effects, or induced secondary lightning effects found in lower surge levels of IEC61000-4-5. They are also very successful in protecting airborne avionics and electrical systems. Since their response time is virtually instantaneous, they can also protect from electrostatic discharge (ESD) and electromagnetic interference (EMI) per IEC61000-4-2 and IEC61000-4-4 standards.
The Microsemi 1N6036‑1N6072A series are bidirectional transient voltage suppressors (TVS) designed for protecting circuits from inductive switching transients, RF spikes, ESD, EFT and secondary lightning. All devices share a 1500 W peak pulse power rating and a response time of less than 100 ps.
They are offered in a hermetically sealed DO‑13 (DO‑202AA) metal package, with a working voltage range of 5.5 V to 185 V and operating temperatures from –65 °C to +175 °C. Military‑qualified versions are available with JAN, JANTX or JANTXV prefixes, and surface‑mount equivalents are listed in separate data sheets.
| Peak Pulse Power | 1500 W |
|---|---|
| Working Voltage Range | 5.5 V to 185 V |
| Operating Temperature Range | -65 °C to +175 °C |
| DC Power Dissipation | 1 W at ≤125 °C |
| Solder Temperature | 260 °C for 10 s (max) |
| Package Type | DO‑13 (DO‑202AA) hermetically sealed metal and glass |
| Weight | 1.4 g (approx.) |
The series is rated for a peak pulse power of 1500 W.
They operate from –65 °C up to +175 °C.
They are housed in a DO‑13 (DO‑202AA) hermetically sealed metal and glass package.
Yes, by adding the JAN, JANTX or JANTXV prefix per MIL‑PRF‑19500/507.
