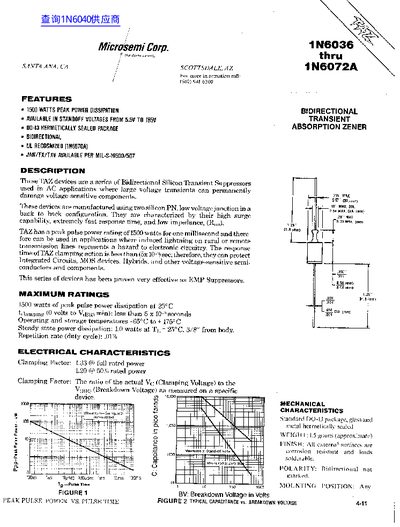

The 1N6036 is a bidirectional silicon transient suppressor (TAZ) designed for AC applications where large voltage transients can damage voltage‑sensitive components. It features a peak pulse power rating of 1500 W for one millisecond and a very fast clamping response time of less than 5 × 10⁻⁹ s.
The datasheet lists maximum ratings such as a stand‑off voltage range of 5.5 V to 185 V, operating temperature from –65 °C to +175 °C, and a steady‑state power dissipation of 10 W at 25 °C. Mechanical details include a DO‑13 hermetically sealed package, weight of about 1.4 g, and corrosion‑resistant external surfaces.
| Peak pulse power dissipation | 1500 W |
|---|---|
| Stand‑off voltage range | 5.5 V to 185 V |
| Operating temperature range | -65 °C to +175 °C |
| Steady‑state power dissipation | 10 W at 25 °C |
| Repetition rate (duty cycle) | 0.1 % |
| Package type | DO‑13 hermetically sealed |
| Weight | 1.4 g |
| Clamping factor (full rated power) | 1.33 |
| Clamping factor (50 % rated power) | 1.20 |
| Clamping response time | < 5 × 10⁻⁹ s |
The device can dissipate up to 1500 W of peak pulse power for one millisecond.
The clamping factor is 1.33 when the device operates at its full rated power.
It is rated for operation from –65 °C up to +175 °C.
The component is supplied in a DO‑13 hermetically sealed package.
