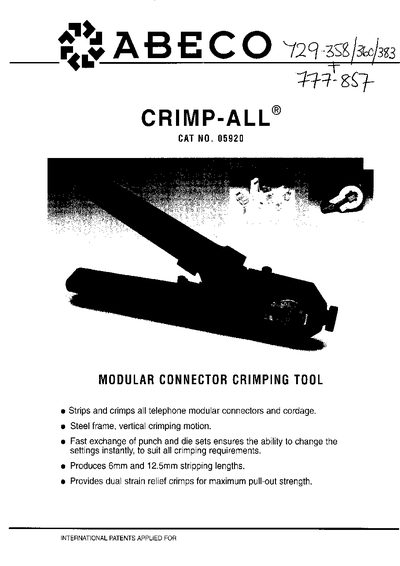

The CRIMP-ALL® is a single‑lever action modular connector crimping tool designed for professional installers. It strips and crimps all telephone modular connectors and cordage, offering 6 mm and 12.5 mm stripping lengths and dual strain‑relief crimps for maximum pull‑out strength.
The tool features a ratchet‑operated safe‑crimp mechanism that prevents release until the punch reaches the end of its travel. Punch and die sets can be exchanged in seconds by removing the die retaining screw, sliding out the punch retaining springs, and fitting replacement sets, ensuring precise and repeatable crimps.
| Stripping length | 6 mm and 12.5 mm |
|---|---|
| Operation type | Single lever‑action |
| Safety mechanism | Ratchet operated safe‑crimp mechanism |
| Supported connector – 6/4 BT Standard Plugs | 430A & 431A (Cat. No. 0592002) |
| Supported connector – 8/8 Long Body RJ45 | Cat. No. 0592006 |
Remove the die retaining screw and push out the die, slide out the punch retaining springs and remove the punch, fit the replacement punch and die, then reverse the procedure.
The tool produces stripping lengths of 6 mm and 12.5 mm.
A ratchet‑operated safe‑crimp mechanism holds the handles until the punch reaches the end of its travel and a correct crimp is made.
