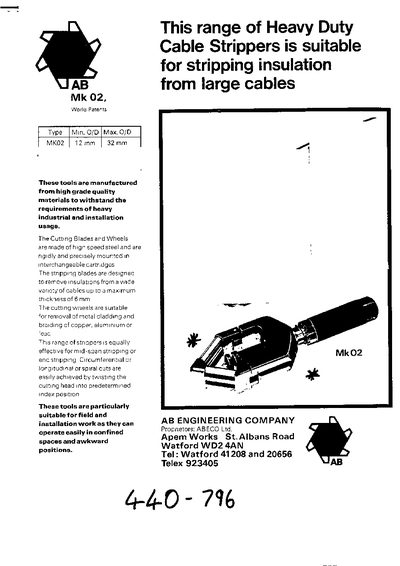

The manual describes the ABECO Mk.02 heavy‑duty cable stripper, its high‑speed‑steel cutting blades and interchangeable cartridges, and its ability to strip insulation up to 6 mm thick from cables ranging from 12 mm to 32 mm outer diameter. It also lists typical applications such as aluminium sheathing removal and field installation work.
Detailed operating procedures are given, including how to set cutting depth, select roller support, insert cartridges, and choose the type of cut (spiral, straight, or longitudinal) using colour‑coded index positions. Specifications, cartridge options, and special application notes are provided for reference.
| Tool size | 50 x 30 x 190 mm |
|---|---|
| Weight | 320 g |
| Cable diameter range | 12 mm – 32 mm |
| Maximum insulation thickness | 6 mm |
Remove the cartridge, turn the knurled knob ‘A’ to adjust the depth, and lock it with nut ‘B’; then measure the depth against the cable to be stripped.
The Mk.02 measures 50 × 30 × 190 mm and weighs about 320 g.
Support rollers are supplied with all cartridges but are not normally used for cable diameters less than 20 mm.
