The document describes four different models of wire strippers, including Mk 1 F/D wire stripper, Powerstrip wire stripper, Mk 02 cable stripper, and CS40 cable stripper. These tools have different features and characteristics, and are suitable for stripping wires and cables of various sizes.

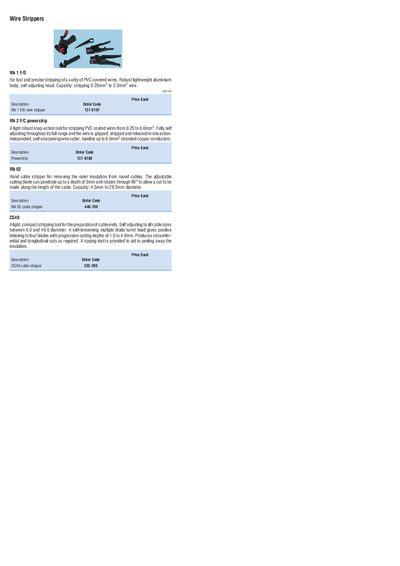

This leaflet presents ABECO's range of wire stripping tools, covering four models designed for fast, precise removal of PVC‑covered wires and cables. Each tool features a lightweight aluminium body and a self‑adjusting head for consistent performance.
The Mk 1 F/D handles wires from 0.25 mm to 2.5 mm, while the Mk 2 F/C Powerstrip strips PVC‑coated wires from 0.25 mm up to 6.0 mm and includes a self‑sharpening cutter for stranded copper. The Mk 02 cable stripper cuts depths up to 3 mm and works on cables 4.5 mm–28.5 mm in diameter. The CS40 model covers cable diameters from 6.0 mm to 40.0 mm with a multi‑blade turret offering 1.0 mm–4.0 mm cutting depths.
| Mk 1 F/D stripping capacity | 0.25 mm to 2.5 mm |
|---|---|
| Mk 2 F/C Powerstrip stripping capacity | 0.25 mm to 6.0 mm |
| Mk 2 F/C cutter capacity | up to 6.0 mm stranded copper |
| Mk 02 cutting depth | up to 3 mm |
| Mk 02 cable diameter range | 4.5 mm to 28.5 mm |
| CS40 cable diameter range | 6.0 mm to 40.0 mm |
| CS40 blade depth range | 1.0 mm to 4.0 mm |
It strips wires from 0.25 mm up to 2.5 mm.
The Mk 2 F/C Powerstrip strips PVC‑coated wires from 0.25 mm to 6.0 mm.
The CS40 can handle cable diameters from 6.0 mm up to 40.0 mm.
The cutting blade can penetrate up to a depth of 3 mm.
