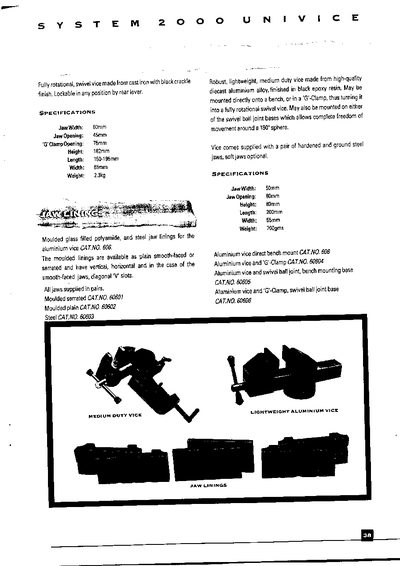

The SYSTEM 2000 UNIVICE range includes a fully rotational, swivel cast‑iron vice with a black crackle finish and several aluminium versions. The vices can be locked in any position by a rear lever and may be mounted directly on a bench, in a G‑Clamp, or on a swivel ball‑joint base for 180° movement.
Specifications are listed for each model, including jaw widths, opening ranges, dimensions, and weight. Optional jaw linings are supplied in pairs, with moulded polyamide, serrated, plain, or steel options identified by catalogue numbers.
| Jaw Width (cast‑iron) | 60mm |
|---|---|
| Jaw Opening (cast‑iron) | 45mm |
| G‑Clamp Opening (cast‑iron) | 75mm |
| Height (cast‑iron) | 182mm |
| Length (cast‑iron) | 150‑195mm |
| Width (cast‑iron) | 65mm |
| Weight (cast‑iron) | 2.3kg |
| Jaw Width (medium duty) | 50mm |
| Jaw Opening (medium duty) | 80mm |
| Height (medium duty) | 80mm |
| Length (medium duty) | 200mm |
| Width (medium duty) | 55mm |
| Weight (medium duty) | 700g |
The cast‑iron swivel vice has a jaw width of 60 mm.
The aluminium vice can be mounted directly on a bench, in a G‑Clamp, or on a swivel ball‑joint base for full 180° movement.
Jaw linings are offered as moulded glass‑filled polyamide (plain, serrated, or with V‑slots) and steel, each supplied in pairs with catalogue numbers.
