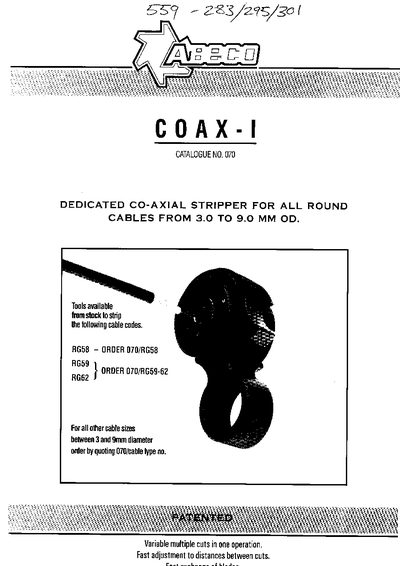

The COAX‑I is a hand‑held coaxial stripping tool designed for round cables from 3.0 to 9.0 mm outer diameter. It can strip a variety of cable codes such as RG58, RG59‑62 and RG62, and offers variable multiple cuts in a single operation with quick distance adjustments.
Operation is simple: insert the cable, depress the carrier to a ratchet click, rotate the blade carrier 2‑3 times, and release the cuts. Distance between cuts is changed by loosening the blade retaining screw and swapping the dimensionally marked distance blocks. Accessories include a set of distance blocks (Catalogue No 07105) and spare blades (Catalogue No 0701, 36 × 42 × 73 mm).
| Cable size range | 3.0 – 9.0 mm OD |
|---|---|
| Distance blocks catalogue number | 07105 |
| Spare blades catalogue number | 0701 |
| Spare blades dimensions | 36 × 42 × 73 mm |
It can strip round cables with an outer diameter from 3.0 mm up to 9.0 mm.
The tool allows variable multiple cuts in one operation by setting the distance blocks and using the ratchet clicks to space each cut.
Loosen the blade retaining screw and replace the distance blocks, which are dimensionally marked, to adjust the spacing.
