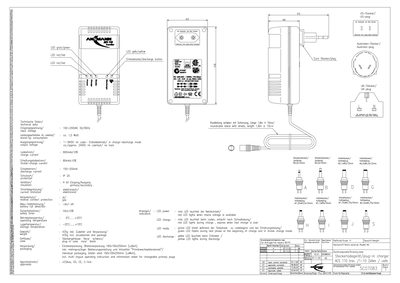

This document provides the technical specifications of the ANSMANN 5C07083 charger. It lists the input voltage range, standby power consumption, output voltage in charge‑discharge mode, and the various current limits for charging and discharging.
Additional information includes protection class (IP20), insulation rating, reverse‑polarity protection, safety timer, LED status indicators, packaging dimensions, and regulatory approvals such as CE and C‑tick. This manual is written in German.
| Input voltage | 100‑240 VAC, 50/60 Hz |
|---|---|
| Standby power consumption | ≈ 1.5 W |
| Output voltage (charge‑discharge mode) | 1‑18 VDC |
| Maximum charge current | > 800 mA |
| Discharge current | 150‑250 mA |
| Protection class | IP20 |
| Insulation rating | 4 kV (primary/secondary) |
| Current limitation | 2 A electronic |
| Safety timer | 10 h |
The charger operates from 100 V to 240 V AC at 50 Hz or 60 Hz.
It consumes approximately 1.5 W when idle.
The device has an IP20 protection class.
The charger can supply more than 800 mA for charging.
