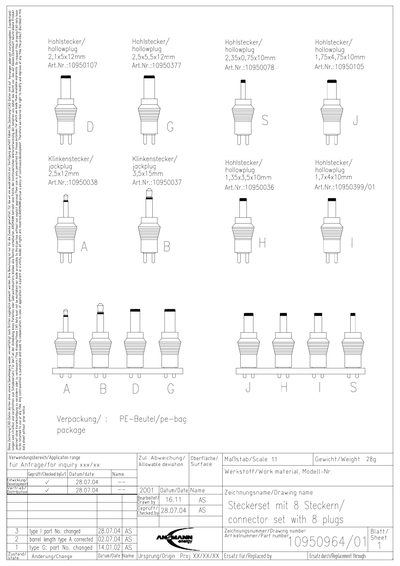

This one‑page document lists various ANSMANN hollow plugs and jack plugs with their physical dimensions and corresponding part numbers. Each entry includes size measurements in millimetres and a unique article number (Art. Nr.).
Additional information covers packaging type (PE‑bag), application range, allowable deviation, weight (28 g) and drawing references for the connector set. This manual is written in German.
| Hollowplug size (mm) | 2.1 × 5 × 12 |
|---|---|
| Jackplug size (mm) | 2.9 × 12 |
| Connector weight | 28 g |
The part number is Art. Nr.: 10950038.
The listed weight is 28 g.
They are packed in a PE‑bag.
