The ANSMANN MK120A160GS is a compact AC/AC adaptor designed for 230 V ~ 50 Hz mains input and provides a regulated 12 V output at up to 1600 mA (19.2 VA). The device includes protection features such as primary and secondary electrical protection and an IP20 enclosure.

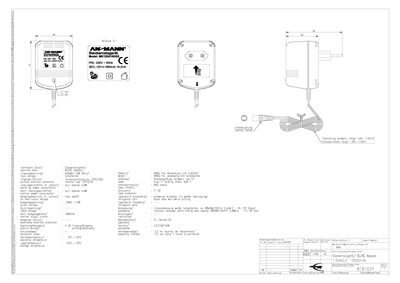

The leaflet lists physical details (88 × 58 × 102 mm packaging, 1.8 m flat cable), safety approvals (CE, IEC/EN61558), and user indicators like a red LED that lights when the mains is connected. Packaging is supplied in a white folding box with a black ABS plug housing (type 7). This manual is written in German.
| Input voltage | 230 V ~ 50 Hz |
|---|---|
| Output voltage | 12 V |
| Output current | 1600 mA |
| Power rating | 19.2 VA |
| Cable length | 1.8 m |
| Approvals | CE, IEC/EN61558 |
| Packaging dimensions | 88 × 58 × 102 mm |
The adaptor is designed for a 230 V ~ 50 Hz mains input.
It delivers a regulated 12 V output at up to 1600 mA (19.2 VA).
Yes, a red LED lights when the mains is connected.
