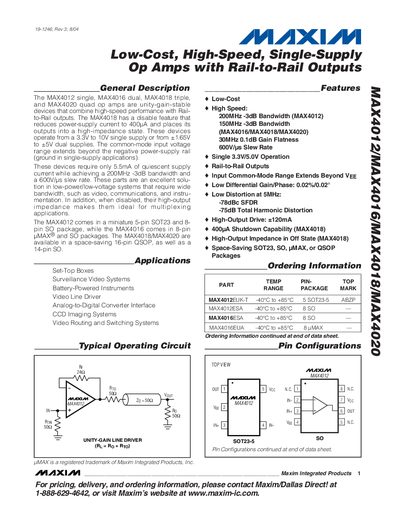

The MAX4012/MAX4016/MAX4018/MAX4020 series of operational amplifiers are unity-gain-stable devices that combine high-speed performance with Rail-to-Rail outputs, low cost and high speed.
The MAX4012 (single), MAX4016 (dual), MAX4018 (triple) and MAX4020 (quad) op‑amps are unity‑gain‑stable devices that combine high‑speed performance with rail‑to‑rail outputs. They operate from a 3.3 V to 10 V single supply or from +1.65 V to +5 V dual supplies and feature an input common‑mode range that extends beyond the negative rail.
Typical applications include set‑top boxes, surveillance video systems, battery‑powered instruments, video line drivers, ADC interfaces and CCD imaging systems. The devices are offered in compact SOT‑23, SO, UMAX and QSOP packages and provide up to +120 mA output drive, 200 MHz bandwidth (MAX4012) and a 600 V/µs slew rate while consuming only 5.5 mA of quiescent current when enabled.
| Bandwidth (MAX4012) | 200 MHz |
|---|---|
| Slew Rate | 600 V/µs |
| Quiescent Supply Current (enabled) | 5.5 mA per amplifier |
| Output Drive Current | +120 mA |
| Supply Voltage Range | 3.3 V–10 V (single) / 1.65 V–5 V (dual) |
| Input Common‑Mode Range | Extends beyond VEE |
| Shutdown Current (MAX4018) | 400 pA |
The MAX4012 provides a 200 MHz -3 dB bandwidth.
When enabled, each amplifier draws about 5.5 mA of quiescent supply current.
The op‑amps operate from a 3.3 V to 10 V single supply or from +1.65 V to +5 V dual supplies.
The devices can drive up to +120 mA of output current.
