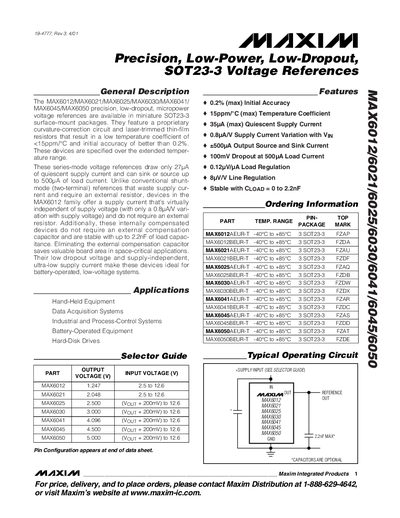

The MAX6012/MAX6021/MAX6025/MAX6030/MAX6041/MAX6045/MAX6050 precision, low-dropout, micropower voltage references offer 0.2% (max) initial accuracy and a temperature coefficient of less than 15 ppm/°C over the extended temperature range. These series-mode voltage references draw only 27µA of quiescent supply current and can sink or source up to 500µA of load current.
The Maxim MAX6012/6021/6025/6030/6041/6045/6050 series are precision, low‑power, low‑dropout voltage references offered in a miniature SOT‑23‑3 package. They feature a proprietary 35 pA quiescent supply current, laser‑trimmed thin‑film resistors and internal curvature‑correction for high accuracy.
The document provides absolute maximum ratings, detailed electrical characteristics for each part, pin configuration, package dimensions and turn‑on time data, enabling designers to select the appropriate reference for battery‑operated or low‑voltage systems.
| Typical Output Voltage (MAX6012) | 1.247 V |
|---|---|
| Quiescent Supply Current (typical) | 35 µA |
The devices draw a typical quiescent supply current of about 35 µA.
The MAX6012 provides a typical output voltage of 1.247 V.
