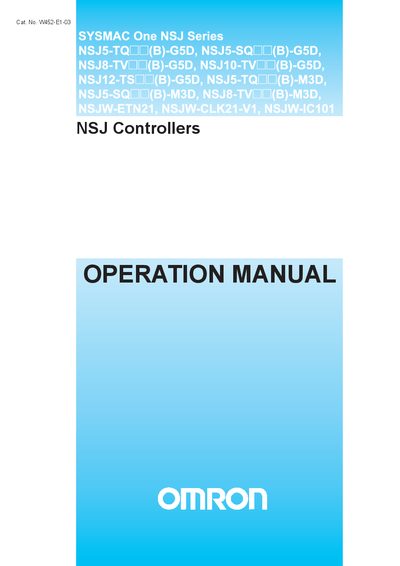

Omron NSJ Series Controllers Operation Manual

This manual introduces the basic operation and functions of NSJ controllers.

Brand: Omron
Category: Industrial Robot
Document type: User Manual
Language: English
Pages: 248
File format: PDF
File size: 6 MB
Published: 07 May, 2012
Updated: 30 September, 2023
MD5 checksum: 20D6756213BC968C9153771D9C16EB06
PDF: Omron NSJ Series Controllers Operation Manual PDF

About this manual

This manual covers safety precautions, installation, wiring, and basic operating procedures for Omron NSJ Series controllers. It also explains how to confirm unit versions and use CX‑Programmer for configuration.

Detailed sections describe system specifications, nomenclature, dimensions, and PLC setup with I/O allocations, helping users configure and maintain the controllers effectively.

What's inside

Overview
Basic Operating Procedures
Specifications and System Configurations
Nomenclature, Functions, and Dimensions
Installation and Wiring
PLC Setup and I/O Allocations
Safety Precautions

Specifications

Controller architecture	Same as CJ1‑H CPU Unit
System version (display)	6.52
Program memory usable	8 K Words

Frequently asked questions

Which CX‑Programmer versions cannot go online with NSJ controllers?

CX‑Programmer version 6.1 or lower cannot go online with NSJZ‑LDOLL(B)‑G5D controllers, and version 7.0 or lower cannot go online with NSJO‑COOL(B)‑M3D controllers.

How can the unit version of an NSJ controller be confirmed?

Use CX‑Programmer to view the PLC Information dialog, or press two corners of the touch panel to open the System Menu on the display section, which shows the unit version.
