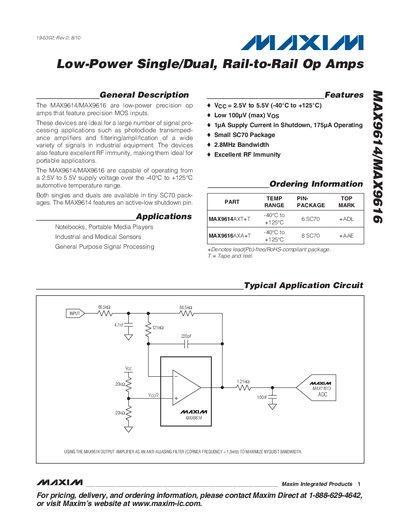

The MAX9614/MAX9616 are low-power precision op amps that feature precision MOS inputs. These devices are ideal for a large number of signal processing applications such as photodiode transimpedance amplifiers and filtering/amplification of a wide variety of signals in industrial equipment. The devices also feature excellent RF immunity, making them ideal for portable applications.
The MAX9614 and MAX9616 are low‑power, precision op‑amps from Maxim that operate from a 2.5 V to 5.5 V supply and cover the –40 °C to +125 °C automotive temperature range. They are offered in a tiny SC70 package and feature an active‑low shutdown pin for power‑saving applications.
Typical applications include photodiode transimpedance amplifiers, portable audio, sensor signal conditioning and ADC driver circuits. The devices provide 2.8 MHz gain‑bandwidth, 1.3 V/µs slew rate, and excellent RF immunity, making them suitable for both industrial and medical equipment.
| Supply Voltage Range | 2.5 V to 5.5 V |
|---|---|
| Input Offset Voltage (max) | 100 µV |
| Operating Quiescent Current | 175 µA |
| Shutdown Current | 1 µA |
| Gain‑Bandwidth | 2.8 MHz |
| Slew Rate | 1.3 V/µs |
| Package Type | SC70 |
The devices operate from 2.5 V to 5.5 V supply voltage.
The shutdown current is less than 1 µA.
Both devices have a gain‑bandwidth of 2.8 MHz.
They are offered in a tiny SC70 surface‑mount package.
