E5AN/E5EN is a new digital temperature controller with improved functions and performance, including improved indication accuracy and preventive maintenance function.

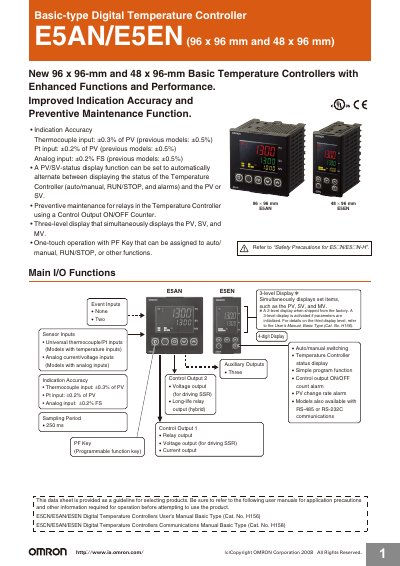

The Basic‑type Digital Temperature Controller E5AN/E5EN is offered in 96 × 96 mm and 48 × 96 mm sizes. It features enhanced indication accuracy, a three‑level display, one‑touch PF key operation, and optional RS‑485 or RS‑232C communications.
The datasheet details power supply options, sensor input types (thermocouple, Pt100, infrared), control output configurations (relay, voltage, current), environmental limits, and ordering part numbers. Safety precautions and warranty information are also included.
| Indication accuracy (thermocouple input) | +0.3% of PV |
|---|---|
| Indication accuracy (Pt input) | +0.2% of PV |
| Power supply voltage (no D in model) | 100 to 240 VAC, 50/60 Hz |
| Power supply voltage (D in model) | 24 VAC/VDC, 50/60 Hz |
| Power consumption (100‑240 VAC) | 10 VA |
| Power consumption (24 VAC/VDC) | 5.5 VA (24 VAC) / 4 W (24 VDC) |
| Sensor input – thermocouple types | K, J, T, E, L, U, N, R, S, B, W, PLII |
| Control output – relay | SPST‑NO, 250 VAC, 5 A, 100 000 operations |
| Ambient operating temperature | -10 °C to 55 °C |
The thermocouple input accuracy is ±0.3 % of the process value.
Models without a ‘D’ use 100 to 240 VAC, while ‘D’ models use 24 VAC or 24 VDC.
The controller can be configured with either one or two control outputs, plus three auxiliary outputs.
The controller operates from –10 °C to 55 °C (no condensation or icing).
