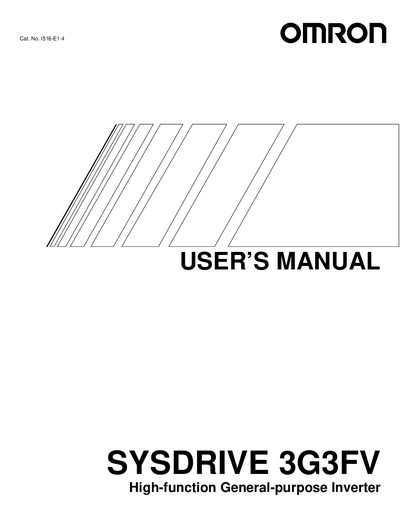

This document is the user's manual for the high-function general-purpose inverter SYSDRIVE 3G3FV series. It describes the functions of the product and its relations with other products.
This manual explains safe handling, unpacking, and precautionary measures for the SYSDRIVE 3G3FV inverter. It emphasizes the dangers of high‑voltage equipment, the need for proper grounding, and the prohibition of opening the unit.
The document is organized into sections covering general precautions, transportation, installation, wiring, operation, maintenance, warning labels, and revision history, giving technicians and users detailed guidance for installing, wiring, and maintaining the inverter.
| Model number | 3G3FV‑A2037 |
|---|---|
| Input voltage | 200‑220 V S50 Hz / 200‑230 V 60 Hz |
| Output voltage / power | AC 3‑phase 0‑290 V 6.7 kVA 17.5 A |
| Weight | 4.5 kg |
| Grounding resistance (200 V class) | ≤ 100 Ω |
Hold the inverter by the radiation fin (heat sink) and use the eye‑bolts; never hold the front cover or pull on the cables while moving it.
Connect the ground terminals to a resistance of 100 Ω or less for the 200‑V AC class, or 10 Ω or less for the 400‑V AC class.
