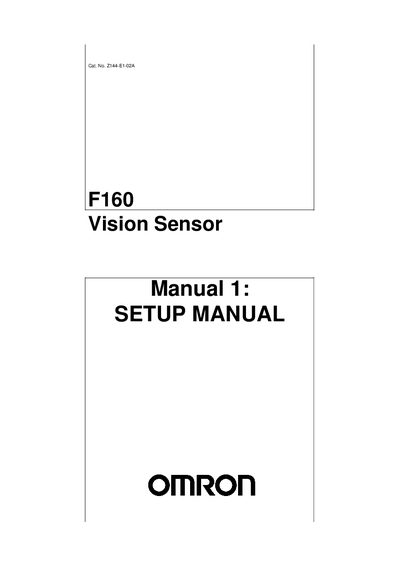

This document is the F160 Vision Sensor Manual 1: Setup Manual user manual, introducing the product's features and characteristics and usage methods.
This manual describes the hardware of the Omron F160 Vision Sensor and explains how to install the components, connect power and peripheral devices, and select lenses, lighting, and memory cards. It also outlines safety precautions, system configuration, and the use of both parallel and serial interfaces.
Additional sections cover troubleshooting, regular maintenance, and specifications. The document is part of a four‑manual series that includes Conversational, Expert Menu, and Communications manuals for full operation of the sensor.
The manual uses Z\DANGER for imminent hazards, Z\WARNING for potentially hazardous situations, and Caution for less serious risks.
External devices can be connected via a parallel interface (I/O terminals or /O connector) or a serial interface (RS‑232C/RS‑422 connector).
