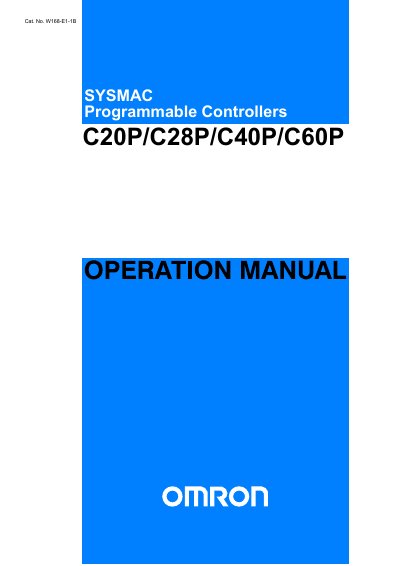

This document provides an operation manual for OMRON's SYSMAC Programmable Controllers P-type Programmable Controllers. The document includes information on precautions and safety measures, as well as the product's performance and features.
The manual is intended for engineers and technicians who install, program, and maintain Omron P‑type programmable controllers. It covers safety precautions, hardware configuration, memory organization, ladder‑diagram programming, and troubleshooting procedures.
The document is organized into sections on background, hardware considerations, memory areas, programming fundamentals, the full instruction set, execution timing, input/debugging, and appendices with standard model tables and programming console details.
| Operating Temperature | 0 °C to 55 °C |
|---|---|
| Operating Humidity | 10 % to 90 % |
| Grounding Resistance | ≤ 100 Ω |
| Cable Length (maintenance) | 5 cm |
The controllers must not be operated below 0 °C or above 55 °C.
Never attempt to disassemble any units while power is supplied; the power must be turned off first.
The system should be grounded to 100 Ω or less.
