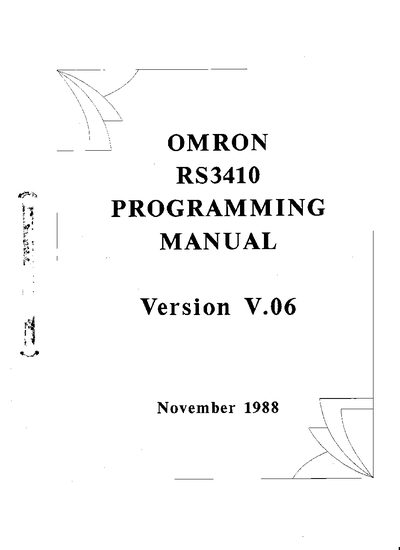

This document is the programming manual for OMRON RS3410, version V.06. It introduces the hardware aspects, including jumping wires and I/O connectors. It also explains the programming procedures and methods, including S-MODE, P-MODE, and X-MODE programming. It provides detailed information on various programming functions and operations.
The manual begins with a hardware overview, describing the jumping wire, I/O connectors, and ROM/RAM configuration of the RS3410 unit. It outlines the physical components needed for installation and basic operation.
The core of the document covers programming procedures, including self‑diagnostics, RAM clear, various reset functions, receipt number setting, PLU management, cashier and clerk data entry, and X‑Mode/Z‑Mode programming. Each function is listed with its command reference for easy implementation.
Use the RAM CLEAR command as described in section 2.2.2 of the manual.
The receipt number is set with the SET RECEIPT# command (section 2.2.5).
Reset the Z‑counter using the RESET Z‑COUNTER command (section 2.2.4).
