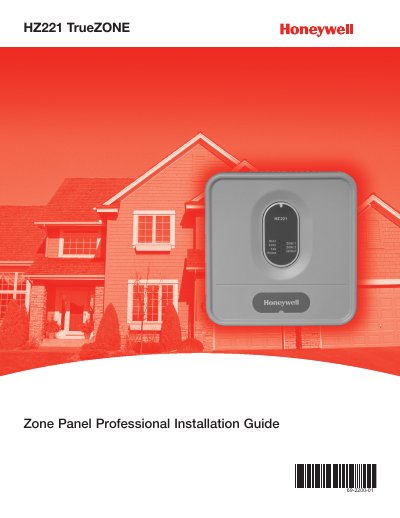

Honeywell HZ221 TrueZONE 69-2200-01 Installation Guide, introduces the product's specifications, installation, wiring, operation, warranty and other information.
The guide provides an overview of the HZ221 TrueZONE zone panel, including its electrical specifications, recommended thermostats, dampers, and accessories, as well as instructions for mounting the panel on walls, studs, or roof trusses.
It also explains wiring requirements, LED status indications, and warranty terms, helping installers correctly connect the panel, transformers, thermostats, and dampers while ensuring compliance with safety codes.
| Input Voltage | 18-30 VAC 50/60 Hz, transformer 40 VA minimum |
|---|---|
| Maximum Current Draw | 6.25 VA max |
| Wiring Gauge | 18-20 gauge solid (not stranded) wire |
| Humidity Rating | 5% to 90% RH non‑condensing |
| Shipping Temperature Range | -20°F to 150°F (-29°C to 66°C) |
| Emissions Compliance | FCC Class B, part 15 |
It requires 18‑30 VAC at 50/60 Hz from a transformer of at least 40 VA.
The panel draws a maximum of 6.25 VA.
