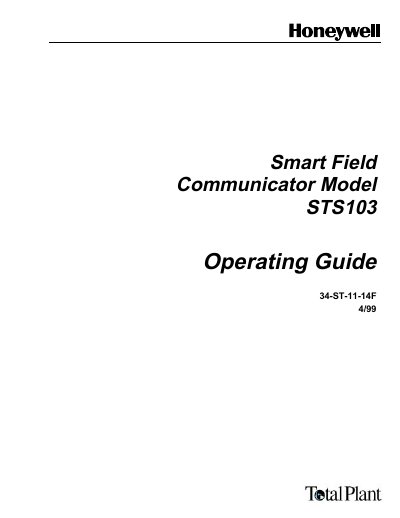

This document is the operating guide for the Smart Field Communicator Model STS103, which covers the use of the product with other smart pressure transmitters, smart temperature transmitters, magnetic flowmeters, and smart multivariable transmitters. The document provides information on the features and characteristics of the product.
This guide introduces the Smart Field Communicator STS103, describing its physical and functional features, connections, and communication modes. It covers keypad functions, display operations, and common key sequences to help both new and experienced users.
The manual includes installation steps, operation procedures, and dedicated chapters for each supported transmitter – the ST 3000 pressure transmitter, STT 3000 temperature transmitter series, MagneW 3000 electromagnetic flowmeter, and SMV 3000 multivariable transmitter – with wiring, setup, configuration, calibration, diagnostics, and troubleshooting information.
Wiring details are provided in Section 4 – ST 3000 Pressure Transmitter, starting on page 47.
Diagnostic messages are listed in Table 3‑1 Diagnostic Messages for SFC and also in the diagnostic sections of each transmitter chapter.
