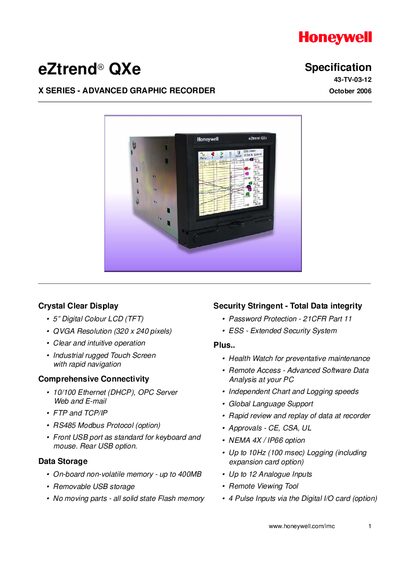

The eZtrend® QXe is an advanced graphic recorder with a 5-inch digital color LCD (TFT), QVGA resolution (320 x 240 pixels), clear and intuitive operation, and an industrial rugged touch screen for quick navigation.
The Honeywell eZtrend QXe is an X Series advanced graphic recorder with a 5‑inch colour TFT touchscreen, up to 12 analogue inputs, and solid‑state storage up to 400 MB.
It offers Ethernet, optional RS485 Modbus, USB ports, password protection, an extended security system (ESS) compliant with 21CFR Part 11, and optional NEMA 4X/IP66 enclosure. Software tools such as TrendViewer, TrendManager Pro and TrendServer Pro provide data viewing, analysis and remote access.
| Display | 5" Digital Colour LCD (TFT), QVGA 320 × 240 |
|---|---|
| Internal Memory | up to 400 MB non‑volatile flash |
| Analogue Inputs | Up to 12 inputs |
| Ethernet | 10/100 Ethernet (DHCP) |
| RS485 Modbus | Optional RS485 Modbus Protocol |
| Enclosure Rating | NEMA 3/IP54 standard, optional NEMA 4X/IP66 |
| Power Supply | 100 VAC to 250 VAC (auto‑select) |
| Battery | Replaceable lithium battery Type 6032, 3.0 V |
It features a 5‑inch digital colour LCD (TFT) with QVGA resolution (320 × 240 pixels).
The recorder provides up to 400 MB of non‑volatile flash memory, with a minimum of 70 MB standard.
It includes 10/100 Ethernet with DHCP, optional RS485 Modbus, and front/rear USB host ports for keyboard, mouse and storage devices.
Password protection with up to four levels and an Extended Security System (ESS) that meets 21CFR Part 11 requirements.
