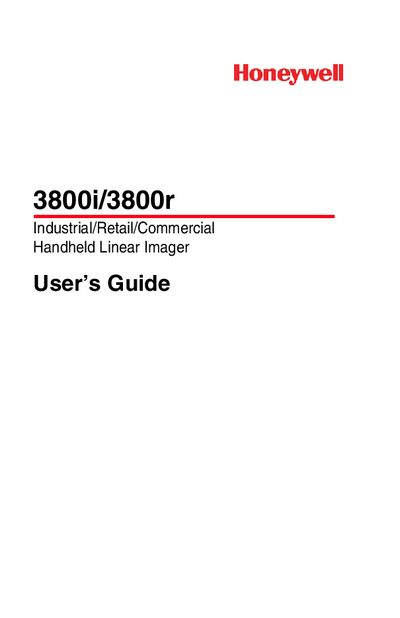

This manual introduces the features and usage methods of 3800i/3800r industrial/retail/commercial handheld linear imager.
The guide introduces the Honeywell 3800i and 3800r handheld linear imagers, describing their IP54 (3800i) and IP41 (3800r) protection ratings, LED safety classification, and compliance with FCC, UL, and international regulations. It also outlines environmental disposal requirements and power‑source recommendations.
Chapters cover unpacking, scanner identification, connecting via keyboard wedge, USB, RS‑232, or wand emulation, reading techniques, trigger settings, output indicators, and a programming chart for custom configurations.
| IP Rating (3800i) | IP54 |
|---|---|
| IP Rating (3800r) | IP41 |
| Power Supply Requirement | Listed Limited Power Source (LPS) or Class 2 type |
| LED Safety Classification | EXEMPT RISK GROUP per IEC 62471:2006 |
| UL Certification | UL60950-1 |
The 3800i is rated IP54 and the 3800r is rated IP41.
Only a listed limited power source (LPS) or a Class 2 type power supply may be used.
The LEDs are classified as EXEMPT RISK GROUP according to IEC 62471:2006.
The device is UL listed under UL60950‑1 and complies with FCC Part 15 Class B requirements.
