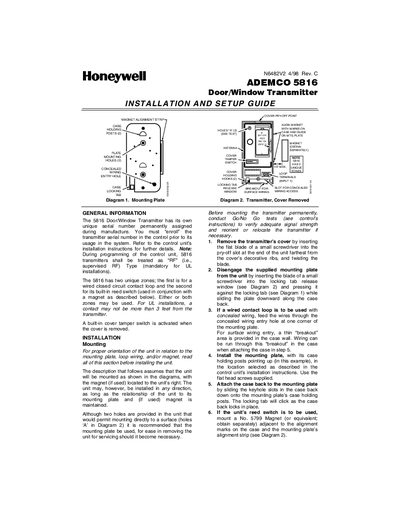

This document is the installation and setup guide for the ADEMCO 5816 Door/Window Transmitter. The transmitter has two unique zones, one for a wired closed circuit contact loop and one for its built-in reed switch. The transmitter has a unique serial number that needs to be enrolled in the control unit before it can be used.
The guide provides an overview of the ADEMCO 5816 Door/Window Transmitter, including its unique serial number, two selectable zones, and a built‑in cover tamper switch. It explains the requirements for UL installations and the need to enroll the transmitter in the control unit before use.
Detailed installation steps are described, including removal of the cover, mounting plate installation, wiring options (concealed or surface), battery installation, and magnet alignment for the reed switch. Safety notices, FCC statements, and maintenance recommendations are also included.
| Dimensions | 1-9/16"W x 3-1/16"H x 1-3/16"D |
|---|---|
| Battery dimensions | 40 mm × 78 mm × 30 mm |
| Contact loop response time | Nominal 100 ms |
