Update: 28 September, 2023
The document describes a remote control system with a frequency range of 2.400~2.483GHz, featuring 16 channels and 65535 IDs per channel. The remote range is approximately 66 feet (20 meters) line of sight. The system operates on a voltage of 2.6V~3.3V and is powered by a CR2032 lithium battery (3V). The output power is under 1mW. The remote control has dimensions of 66(l) x 40(w) x 14(h) mm and weighs 24 grams (including the battery). The receiver has dimensions of 33.6(l) x 16(w) x 3.5(h) mm and weighs 1.6 grams. The system has very low power consumption, with normal operation consuming less than 5mA, laser operation consuming less than 20mA, and sleep mode consuming less than 10uA. The laser used is a semiconductor laser with a wavelength of 650nm and a maximum output power of 0.95mW.
File format: PDF
Size: -
MD5 Checksum: 0EFFD22C1D3D02705F529BF895DC013D
Publication date: 07 May, 2012
Downloads: -

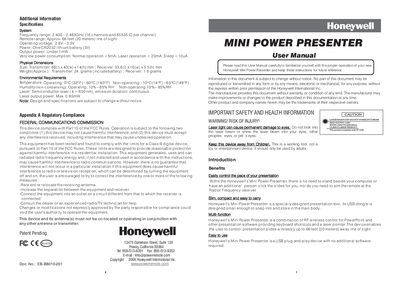

PDF Link: honeywell MINI POWER PRESENTER User Manual PDF
