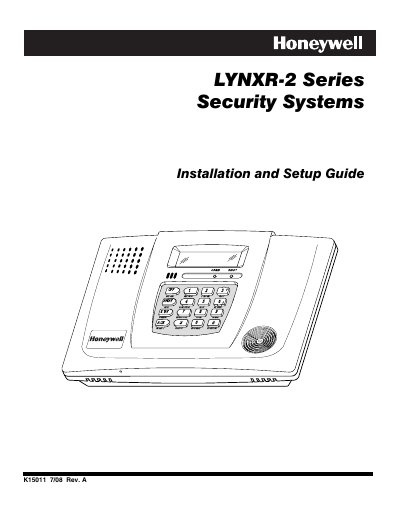

This document is the installation and setup guide of LYNXR-2 series security systems, which introduces the detailed steps of installing and using the system
The LYNXR-2 Series Installation Guide provides step‑by‑step directions for mounting the control panel, making wiring connections, and configuring communication modules. It includes recommendations for fire and intrusion detector placement based on NFPA 72 standards and details on power, backup battery, and optional wireless zones.
Key features described are up to 24 wireless zones, support for up to 8 power‑line carrier devices, multiple communication formats (Ademco Express, Contact ID, GSM, IP), and voice annunciation. The guide also covers programming menus, zone response types, testing procedures, and troubleshooting tips.
| Physical dimensions | 10‑3/8" W x 7‑1/8" H x 1‑3/4" D |
|---|---|
| Voltage input | 9 VAC from plug‑in 25 VA transformer |
| Backup battery type | Nickel‑metal‑hydride pack rated at 7.7 VDC |
| Alarm sounder (piezo) | 6‑14 VDC, 30 mA max |
| Alarm sounder (bell) | 6‑14 VDC, 120 mA max |
| Maximum wireless zones | Up to 24 wireless zones (5800 Series transmitters) |
It uses a rechargeable nickel‑metal‑hydride battery pack rated at 7.7 VDC.
The system can support up to 24 wireless zones using 5800 Series transmitters.
