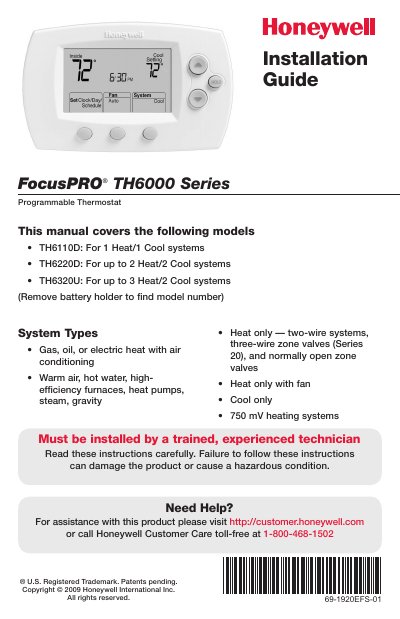

FocusPRO ® TH6000 Series Programmable Thermostat User's Manual
This manual provides step‑by‑step instructions for installing Honeywell FocusPRO TH6000 Series thermostats (models TH6110D, TH6220D, TH6320U). It includes safety warnings, wallplate mounting, power options, terminal designations, and wiring specifications. The guide stresses that installation must be performed by a trained technician to avoid damage or hazardous conditions.
The document details the installer setup process, system type selection, special functions such as Auto Changeover, Adaptive Intelligent Recovery, and Compressor Protection, as well as system testing procedures. It also lists accessories, replacement parts, temperature ranges, electrical ratings, and physical dimensions of the thermostat.
| Heat temperature range | 40°F to 90°F (4.5°C to 32°C) |
|---|---|
| Cool temperature range | 50°F to 99°F (10°C to 37°C) |
| Heating running current | 0.02‑1.0 A |
| Operating ambient temperature | -20°F to 120°F (-28.9°C to 48.9°C) |
Use 18‑ to 22‑gauge thermostat wire; shielded cable is not required.
Separate the wallplate from the thermostat, drill 3/16" holes for drywall or 7/32" holes for plaster, then mount the wallplate as shown.
In Installer Setup, select the desired system type (e.g., Heat Only, 2Heat/2Cool Conventional, Heat Pump) from the list of options.
