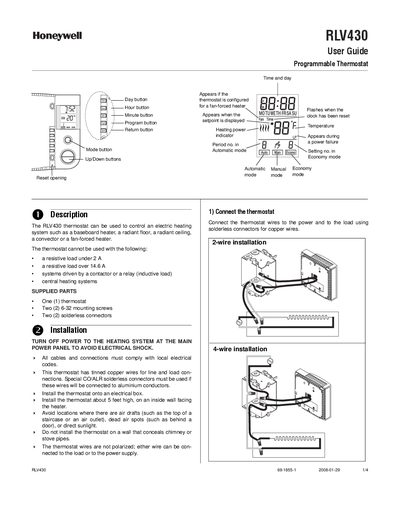

The RLV430 thermostat is designed to control electric heating systems such as baseboard heaters, radiant floors, radiant ceilings, convectors, and fan-forced heaters. It has specific current requirements and installation instructions.
The RLV430 programmable thermostat controls electric heating systems such as baseboard heaters, radiant floor or ceiling units, convectors, and fan‑forced heaters. The guide provides safety instructions, wiring details, mounting steps, and how to configure temperature displays, clock settings, and control modes.
It also covers programming of automatic, manual, and economy schedules, troubleshooting common issues, technical specifications, and warranty information.
| Supply voltage | 120/240 VAC, 60 Hz |
|---|---|
| Power consumption (off) | 860 mW |
| Minimum load | 2 A (resistive only) |
| Maximum load | 14.6 A (resistive only) |
| Display range | 0 °C to 70 °C (32 °F to 99 °F) |
| Setpoint range | 5 °C to 27 °C (40 °F to 80 °F) |
| Resolution | 1 °C (1 °F) |
| Dimensions | 120 × 115 × 26 mm (4.8 × 4.5 × 1 in) |
Open the thermostat’s door, press and hold the Day button, insert a pointed object in the reset opening, wait one second and release the Day button.
You can program up to four periods per day, with separate weekday and weekend schedules.
