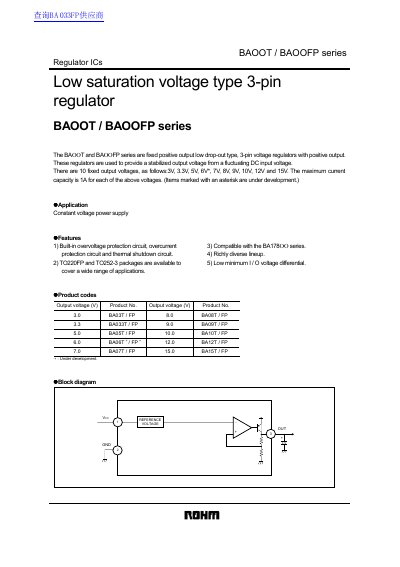

BAOOT / BAOOFP series Fixed positive output low dropout type, 3-pin positive output voltage regulators
The BAOOT/BAOOFP series are fixed‑output, low‑dropout, 3‑pin voltage regulator ICs that provide a stable DC output from a fluctuating input. Ten fixed output voltages are offered, ranging from 3 V to 15 V, each capable of delivering up to 1 A.
The devices are supplied in TO220FP and TO252‑3 packages and include built‑in over‑voltage, over‑current, and thermal‑shutdown protection. Detailed electrical characteristics, recommended operating conditions, and measurement circuits are provided for each part number.
| Fixed output voltages | 3 V, 3.3 V, 5 V, 6 V*, 7 V, 8 V, 9 V, 10 V, 12 V, 15 V |
|---|---|
| Maximum output current | 1 A per voltage version |
| Package types | TO220FP, TO252‑3 |
| Protection features | Built‑in over‑voltage, over‑current, and thermal‑shutdown circuits |
| Input voltage range | 4 V – 25 V (depending on part) |
The series offers ten fixed output voltages: 3 V, 3.3 V, 5 V, 6 V (under development), 7 V, 8 V, 9 V, 10 V, 12 V and 15 V.
Each regulator can supply up to 1 A of output current.
The regulators are available in TO220FP and TO252‑3 surface‑mount packages.
Each device includes built‑in over‑voltage, over‑current, and thermal‑shutdown protection circuits.
