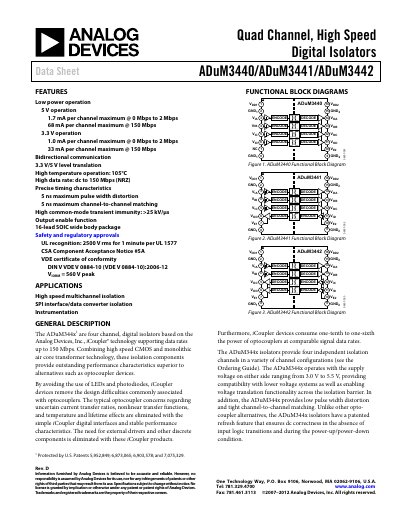

ADuM3440/ADuM3441/ADuM3442 are quad channel, high speed digital isolators with precise timing characteristics, low power, high temperature operation and high data rate. These devices can perform bidirectional communication in the range of 0 Mbps to 150 Mbps and provide 3.3 V/5 V level translation.
The ADuM344x family provides four independent isolation channels using iCoupler® technology. They operate from 3.0 V to 5.5 V, offer bidirectional level translation between 3.3 V and 5 V, and feature low pulse‑width distortion and tight channel‑to‑channel matching. Key features include low power operation (as low as 0.5 mA per channel), high common‑mode transient immunity (>25 kV/µs), and UL 1577 safety approval.
Typical applications are high‑speed multichannel isolation for SPI interfaces, data‑converter isolation, and instrumentation. The datasheet details electrical characteristics for 5 V, 3.3 V, and mixed‑voltage operation, package dimensions, regulatory information, and recommended PCB layout guidelines.
| Maximum Data Rate | 150 Mbps |
|---|---|
| Minimum Pulse Width | 6.67 ns |
| UL Safety Approval | UL 1577, 2500 V rms for 1 minute |
The devices support a maximum data rate of 150 Mbps.
Yes, it is UL recognized under UL 1577 for 2500 V rms for 1 minute.
