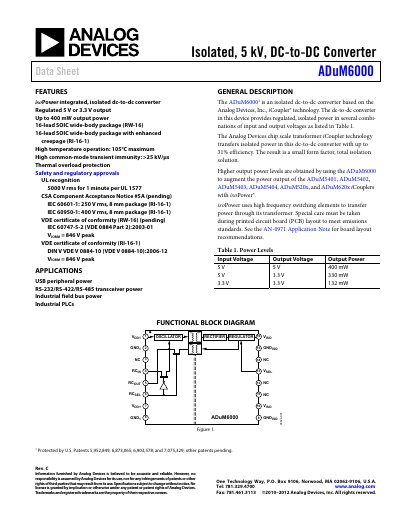

The ADuM6000 is an integrated, isolated DC-to-DC converter with a regulated 5V or 3.3V output and up to 400mW output power. It is housed in a 16-lead SOIC wide-body package and features high temperature operation, thermal overload protection, and high common-mode transient immunity. The product is certified by UL, CSA, IEC, and VDE for safety and regulatory compliance.
The ADuM6000 is an isolated DC‑to‑DC converter based on Analog Devices' iCoupler® technology, offering regulated 5 V or 3.3 V outputs with up to 400 mW of power. It is intended for applications such as USB peripheral power, RS‑232/RS‑485 transceiver power, and industrial field‑bus power.
Key specifications include a 4.5 V‑5.5 V primary input range, 180 MHz switching frequency, 31 % efficiency at maximum load, and a thermal shutdown threshold of 150 °C. The device meets multiple safety and regulatory standards, including UL 1577, CSA, VDE, and IEC certifications.
| Maximum Output Power | 400 mW |
|---|---|
| Primary Input Voltage Range (5 V version) | 4.5 V – 5.5 V |
| Regulated Output Voltage | 5 V or 3.3 V |
| Efficiency at Maximum Output | 31 % |
| Switching Frequency | 180 MHz |
| Thermal Shutdown Threshold | 150 °C |
The ADuM6000 can deliver up to 400 mW of output power.
For the 5 V version, the primary input voltage must be between 4.5 V and 5.5 V.
The thermal shutdown threshold is set at 150 °C.
